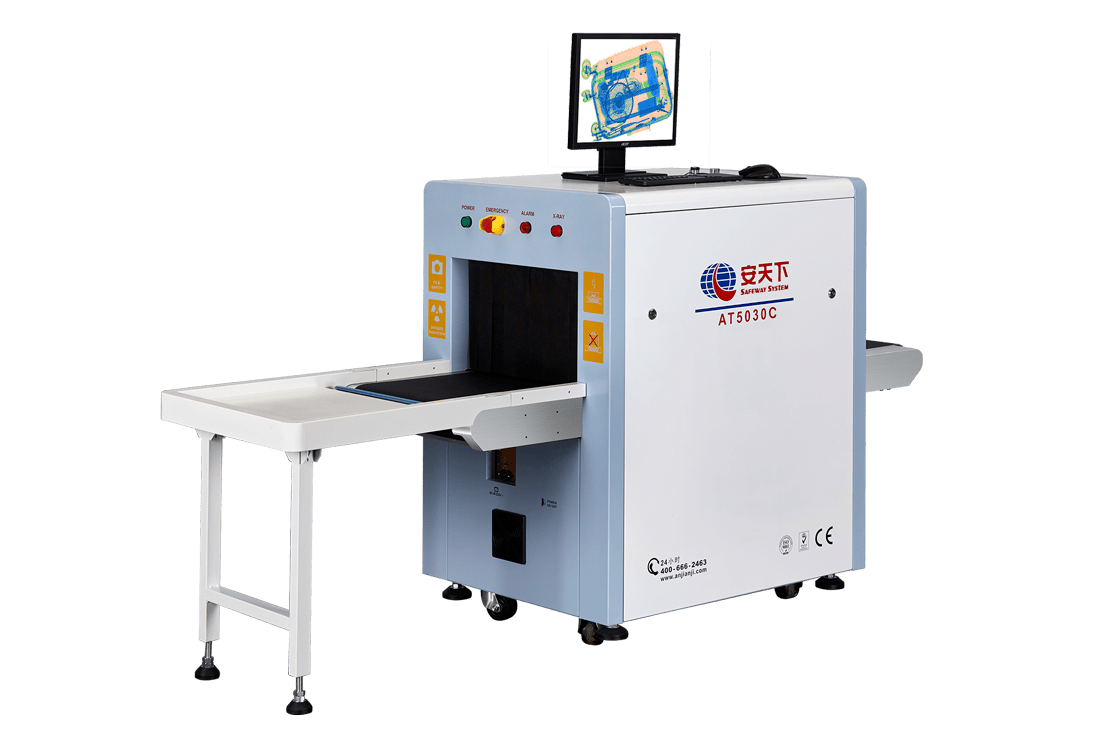

At5030 X-ray Baggage Scanner bangladesh

DescriptionAt5030 X-ray Baggage Scanner bangladeshBasic Info: At5030 X-ray Baggage Scanner bangladeshModel NO. AT5030 Brand Name Safeway System Turner Size 500 mm * 300 mm Conveyor Speed0.22 m/ S Trademark Safeway System Specification CE, SGS, ISO . HS Code 9022191090 Place of Origin Shenzhen, China . Model Number At5030A Penetration’s 8 mm Steel Panel Conveyor Max Load 150 kg Transport Package Wooden Origin ChinaSpecification: At5030 X-ray Baggage Scanner bangladeshPHYSICAL SPECIFICATIONS Unit weight (kgs) 318 Unit size (mm) 1664 (L) * 746 (W) * 1148 (H) after packed in rustic pallet – Gross weight (kgs) 390 Packing size 180 * 88 * 138 cm GENERAL SPECIFICATIONS Tunnel size (mm) 500 (L) * 305 (W) Conveyor Speed (m/ s)0.2 Conveyor height (mm) 663 Conveyor Max Cargo (kgs) 60 X-ray cure per each examination TTypical3.0 μGy/ h, guarantee3.5 μGy/ h X-ray leakage Typical1.0 μGy/ h, guarantee1.5 μGy/ h Penetration Typical 38 mm, guarantee 34 mm . Wire Resolution Typical AWG40, guarantee AWG38 . Penetration Resolution Typical AWG34, guarantee AWG32 . Spatial resolution Typical dia1.0 mm, Vertical dia1.0 mm; Guarantee dia1.0 mm, Vertical dia1.0 mm; Power Consumption0.5 KVA Noise< 60dB Film Safety Guarantee ASA/ ISO1600 Film X-RAY GENERATOR ( SINGLE) Anode Voltage 160 KV Anode power0.6 mama Generate angle 80 degrees upward Generate directly from bottom to top Cooling/ Duty Cycle Canvas Cooling/ 100IMAGE SYSTEM: At5030 X-ray Baggage Scanner bangladeshX-ray Detector L- Shaped Photodiode Array (multi-energetic), 12bit Deep . Image Display High resolution of 1024 * 1280 pixel; Image Grey Level 4096 Image Improvement 1-64times blowup durability, Color/ BW, negative, high/ low . penetration, organic/ inorganic Stripping, general improvement, and pseudo color etc. Image Recall All antedating images recallable, retrieval . Snares & Narcotics Detection Explosives & anesthetics alarm and highlight according to infinitesimal number hand High- Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of pitfalls and contrabands . Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for conservation of alert, as well as training and assessment of image identification qualification . OPERATING ENVIRONMENT Operation temperature/ Humidity 0ºC-45ºC/ 5-95 (non-condensing) Storage Temperature/ Moisture-40 ºCto 70ºC/ 5-95 (non-condensing) Operation Power 220VAC (± 10) 50 ± 3Hz (Optional 100VAC, VAC, VAC, VAC) . UPS 15 mins, 30 mins, 60 mins, etc, voluntary . Monitor High-Resolution Color, TV Accord, 17inch . Hard Disk SEAGATE 500G3.5 ″ CPU G16102.6 G Storehouse 2 GB 1600 MHz DDR3 Inn disk Mainboard H61 SYM76993VGGAMessage | Contact US
